Gas Pedal

Cable Throttle Pedal Examples

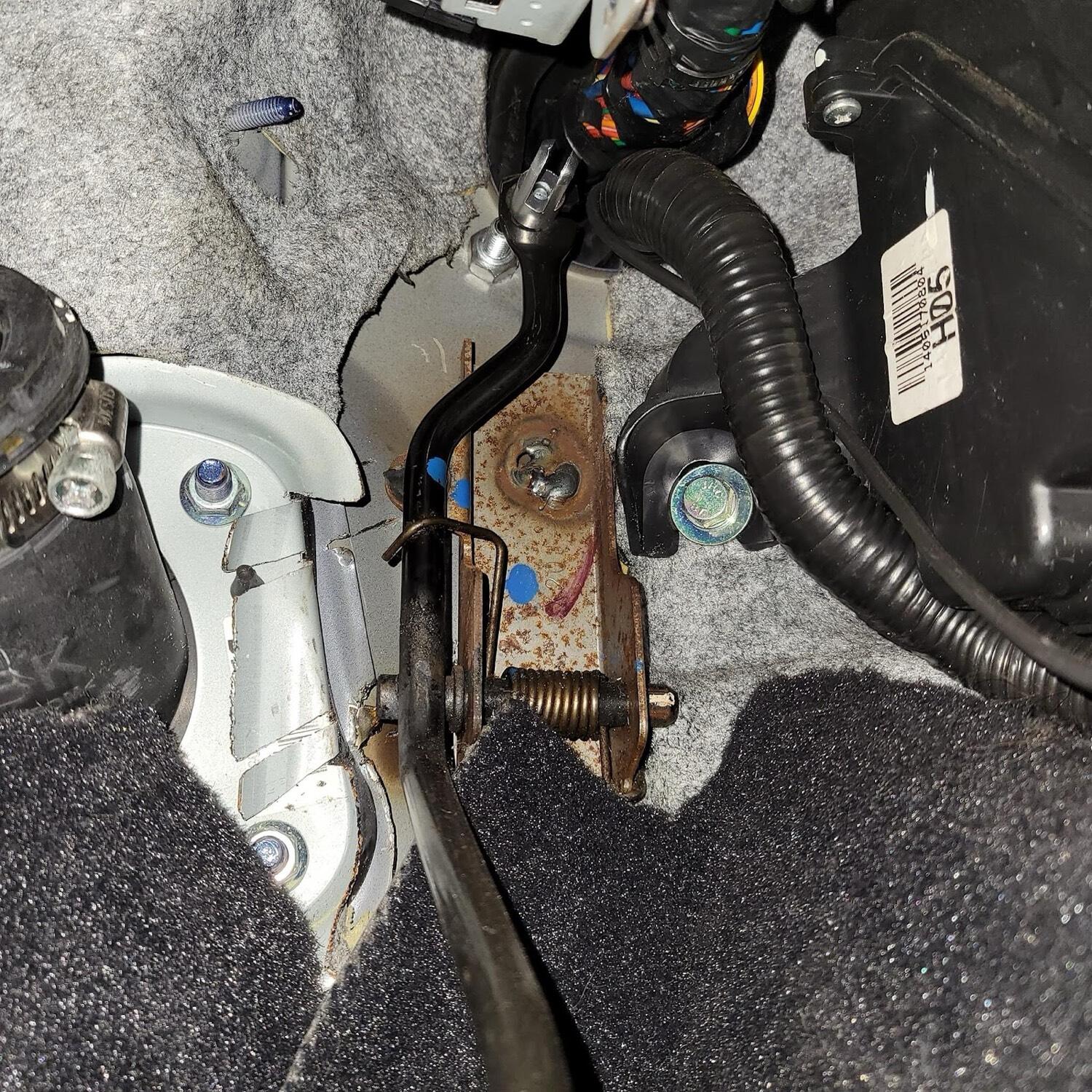

Cable pedal at the firewall.

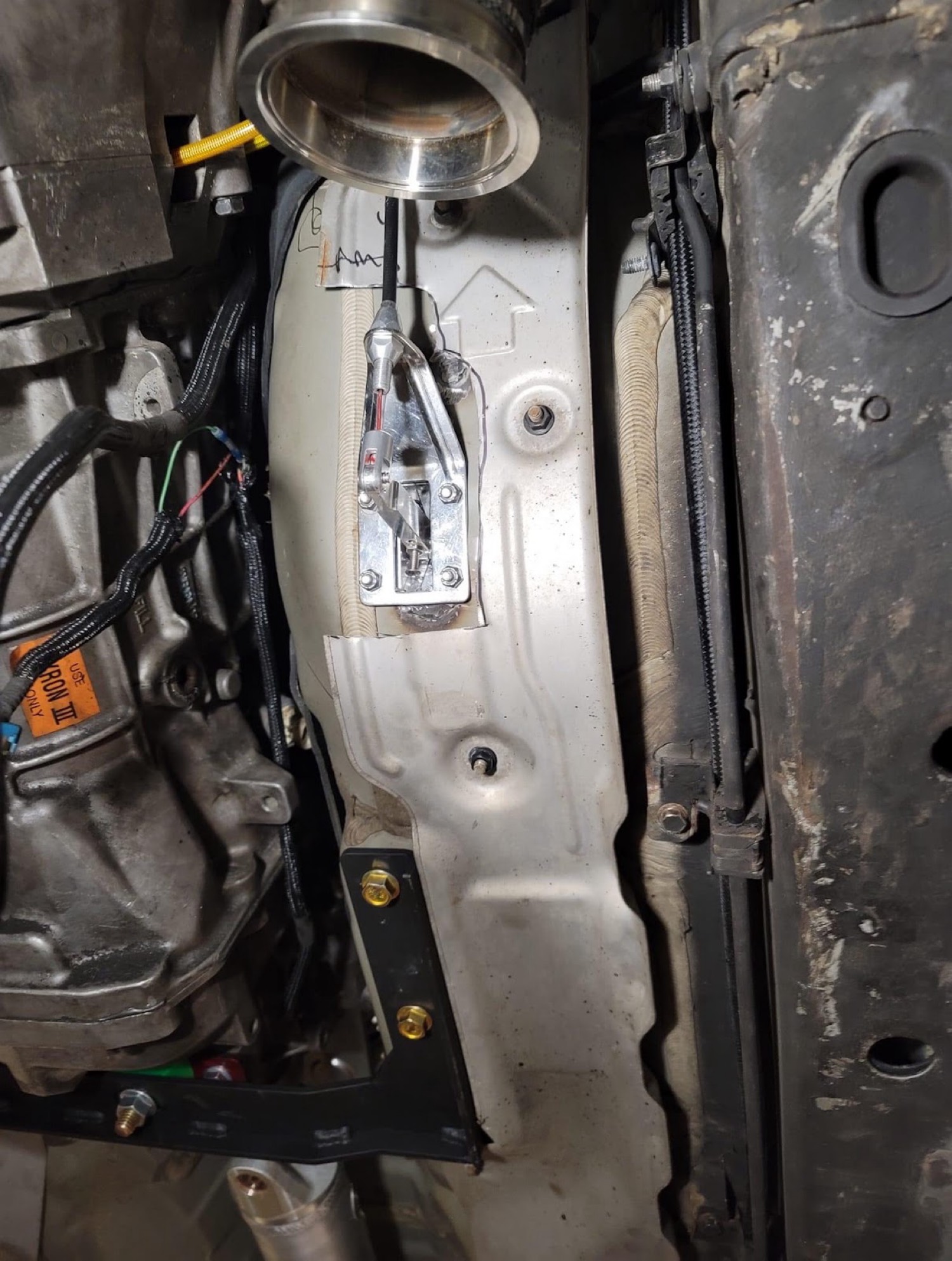

Cable bracket through the firewall.

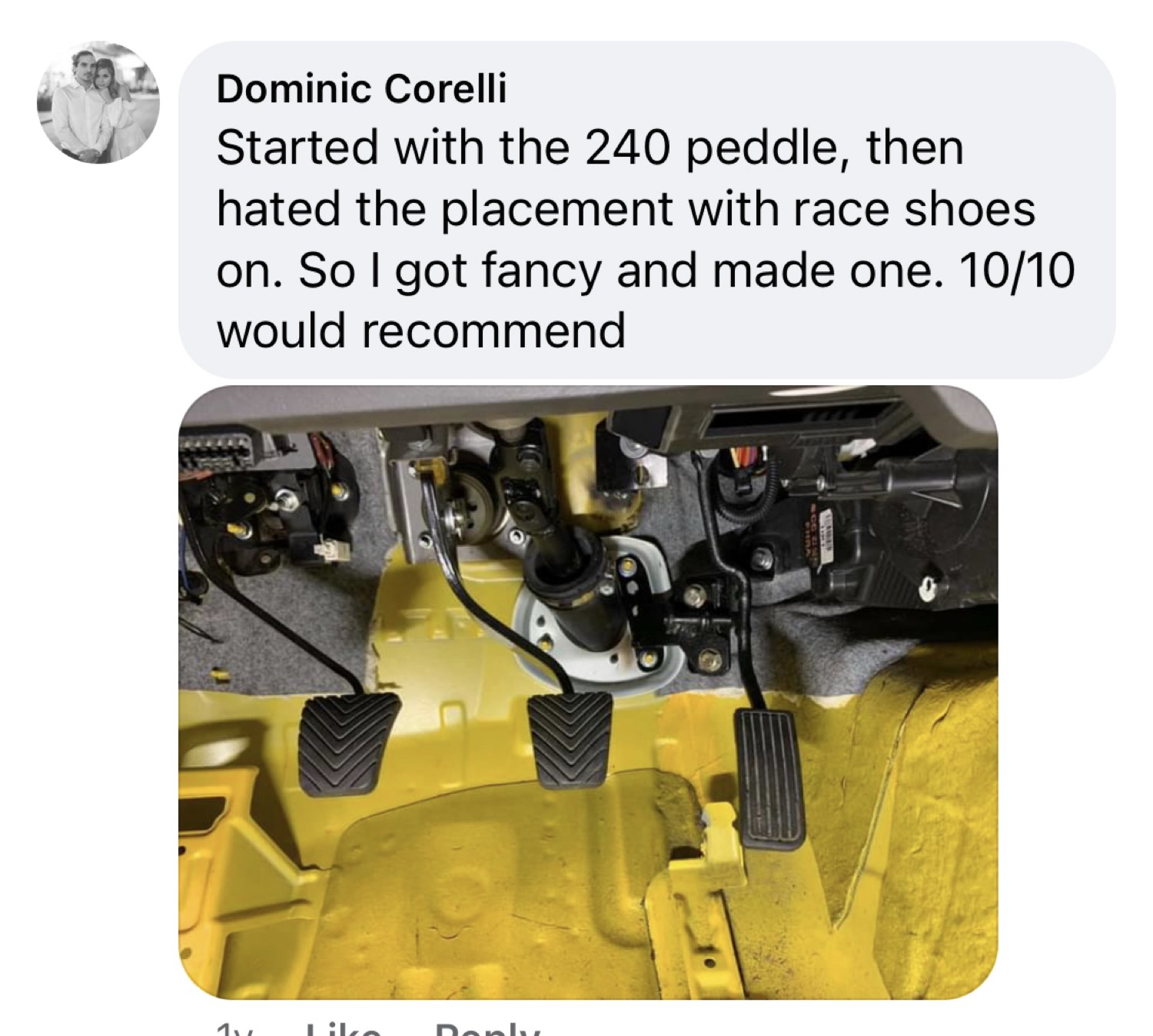

Dominic Corelli: started with the 240 pedal, then made his own.

Drive-by-Wire Pedal Examples

Jason Riddle makes this one:

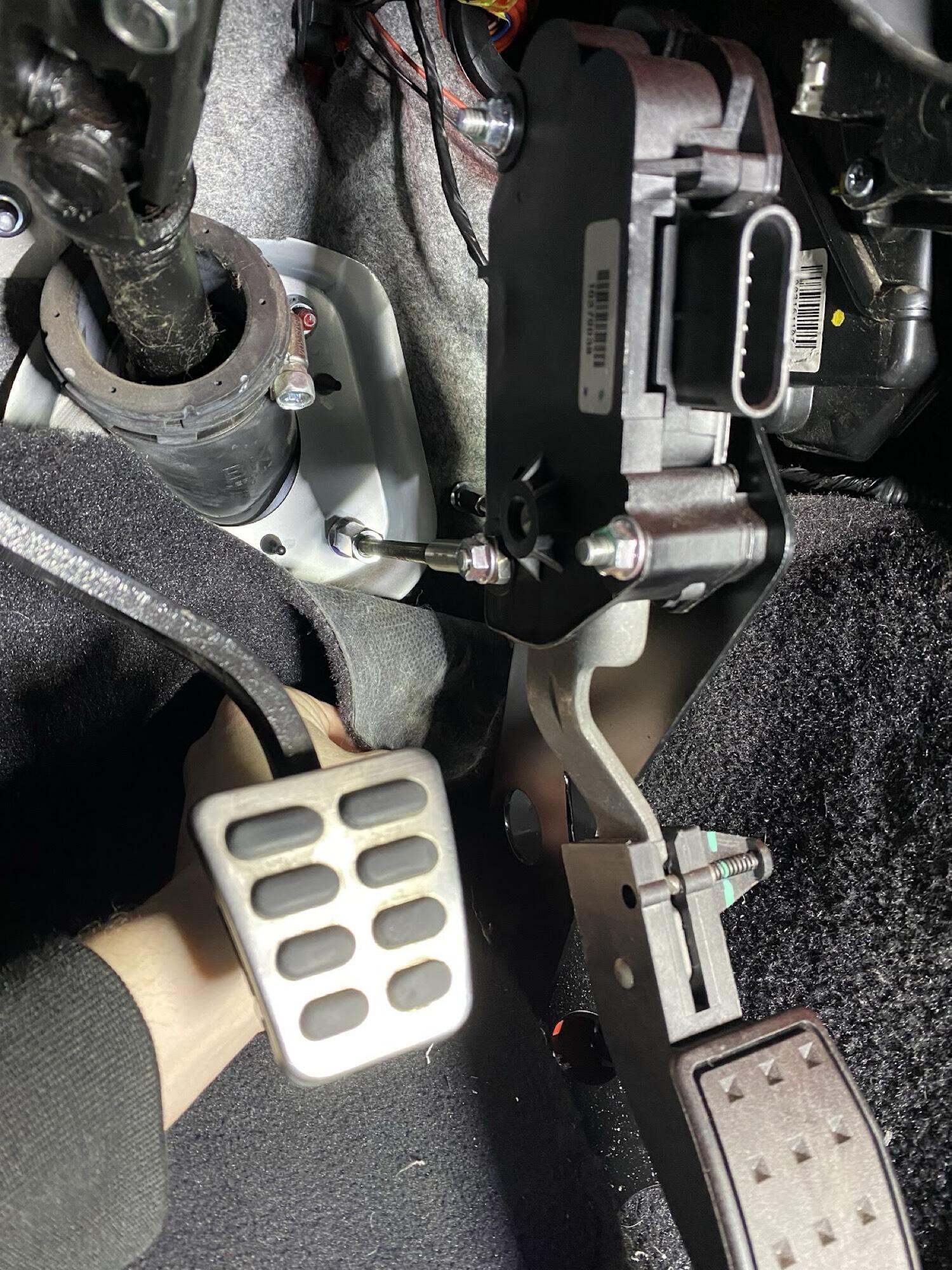

Jason Riddle DBW bracket.

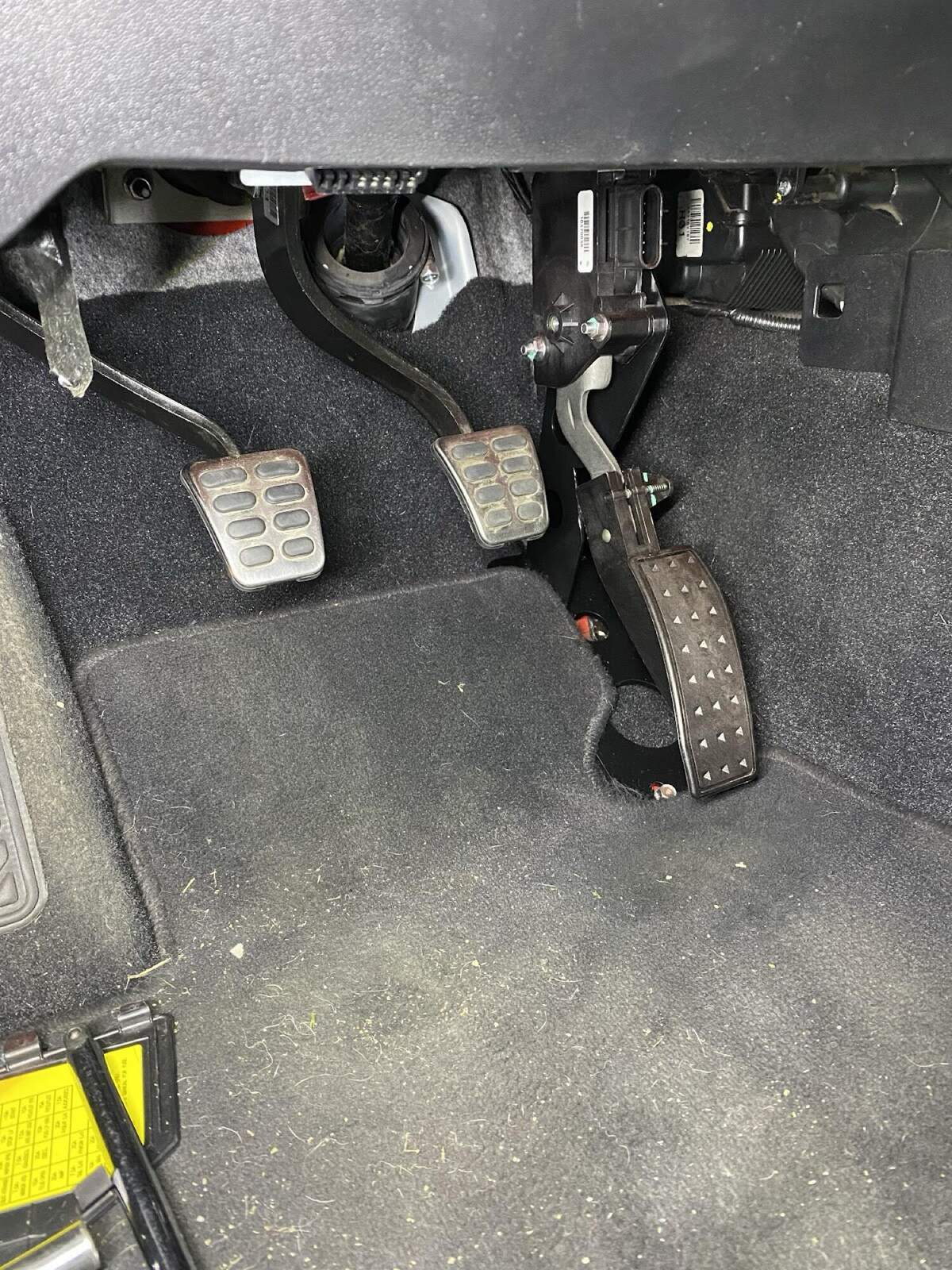

Installed.

Dustin Shoulta's setup:

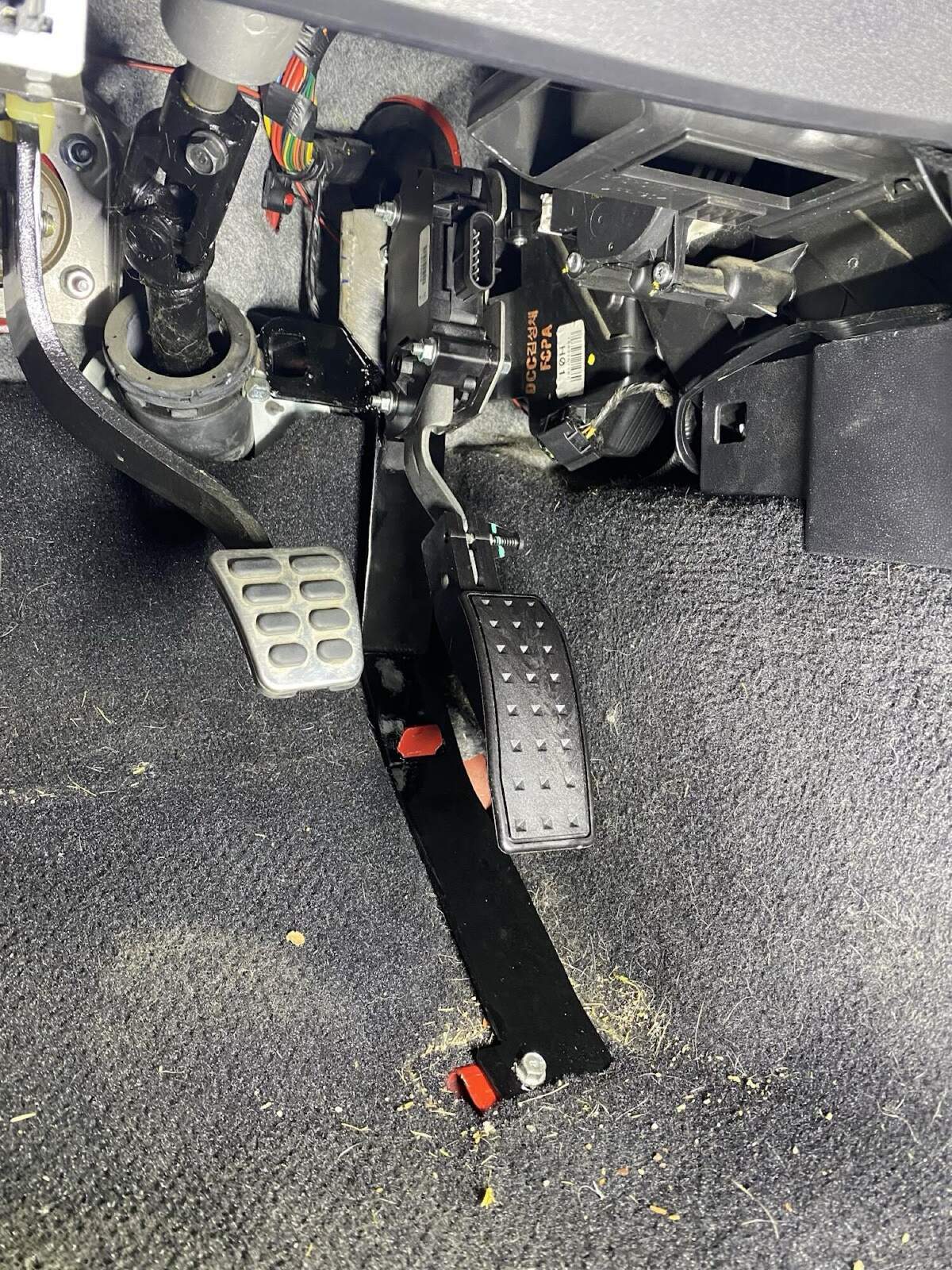

Dustin Shoulta's DBW pedal.

Which DBW Pedal Works With Holley?

  • Holley's GM LS drive-by-wire harness (558-406) is built for late GM 6-pin throttle bodies and pedals: 2005–13 cars and 2007–13 trucks/SUVs.
  • Pedals it lists: GM 10379038 and 19417903 (C6 Corvette), plus Holley's own 145-160 pedal, which is plug-and-play.
  • It is not for older 8-pin pedals or 3-bolt throttle bodies (2006-and-earlier trucks, 2004-and-earlier cars).
  • Holley lists this harness for the Terminator X Max and Dominator ECUs, so plan on a Max if you want drive-by-wire.

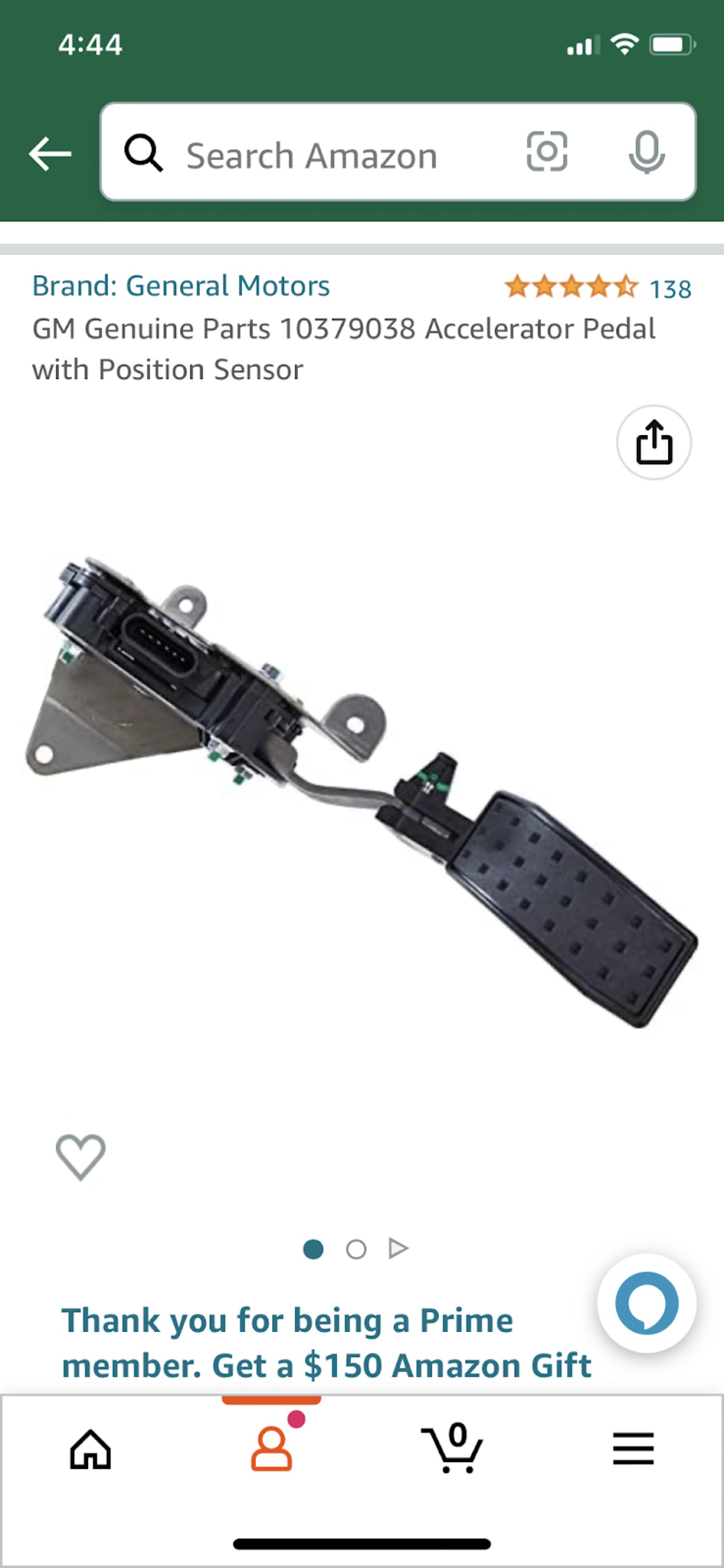

GM 10379038 Pedal

GM Genuine Parts 10379038 accelerator pedal with position sensor

GM 10379038 pedal.

Keeping the OEM Pedal (Holley DBW)

Technical post by Liam Heuvel: for anyone running a Holley Terminator with drive-by-wire, here is how to wire the factory pedal to the Terminator harness.

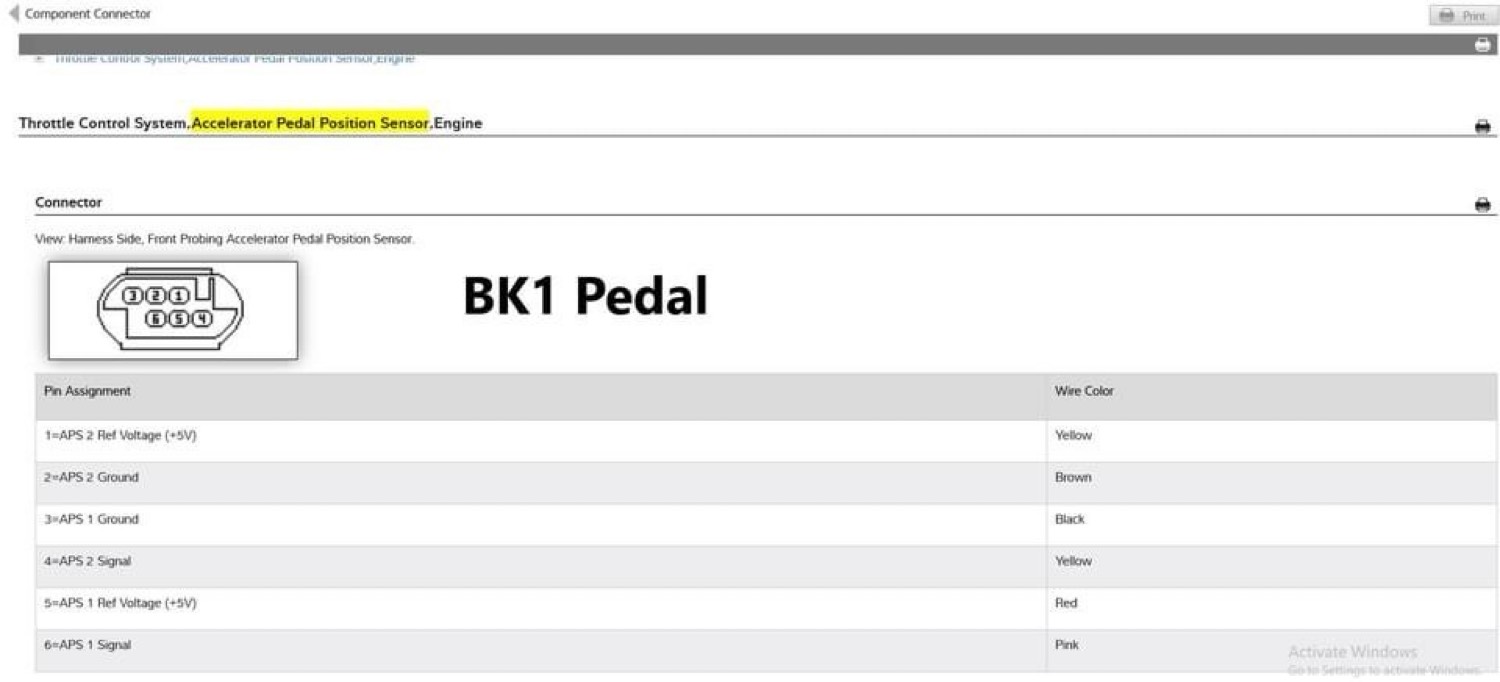

BK1 pedal pinout.

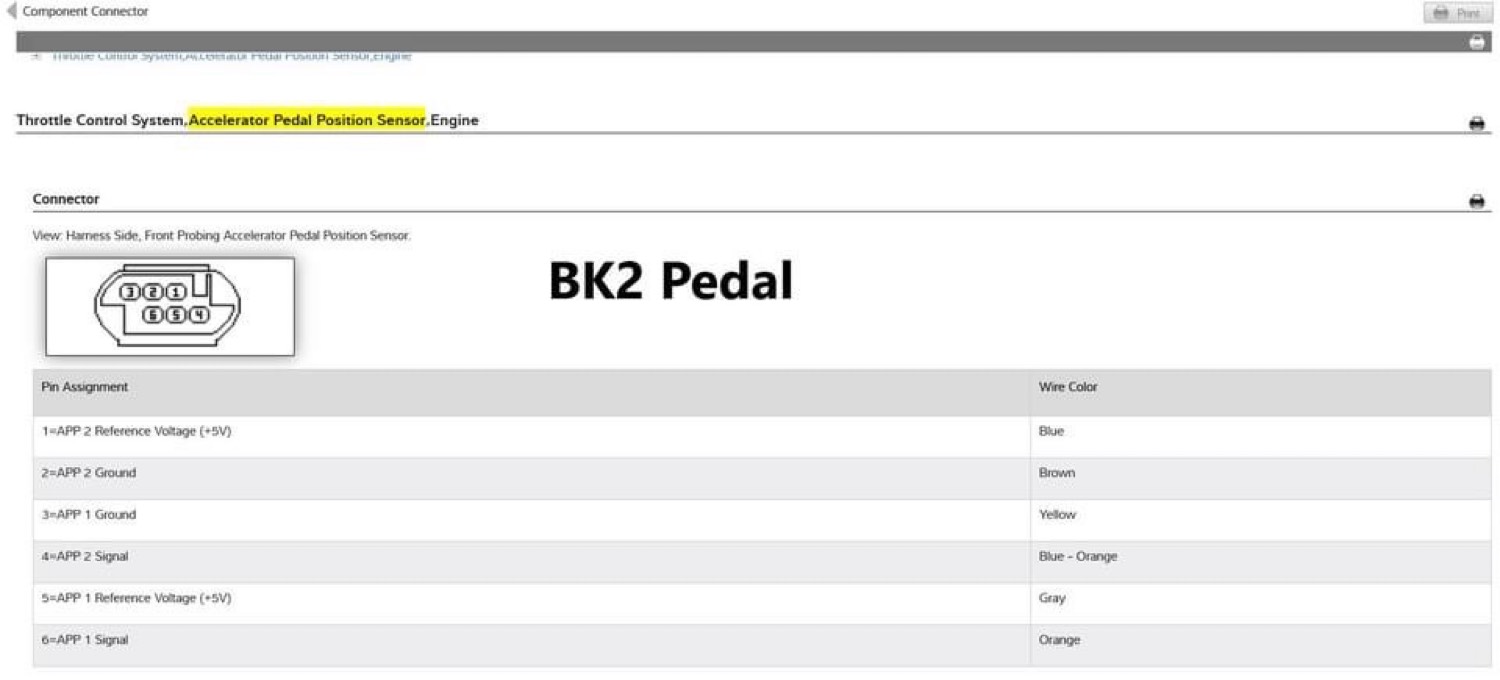

BK2 pedal pinout.

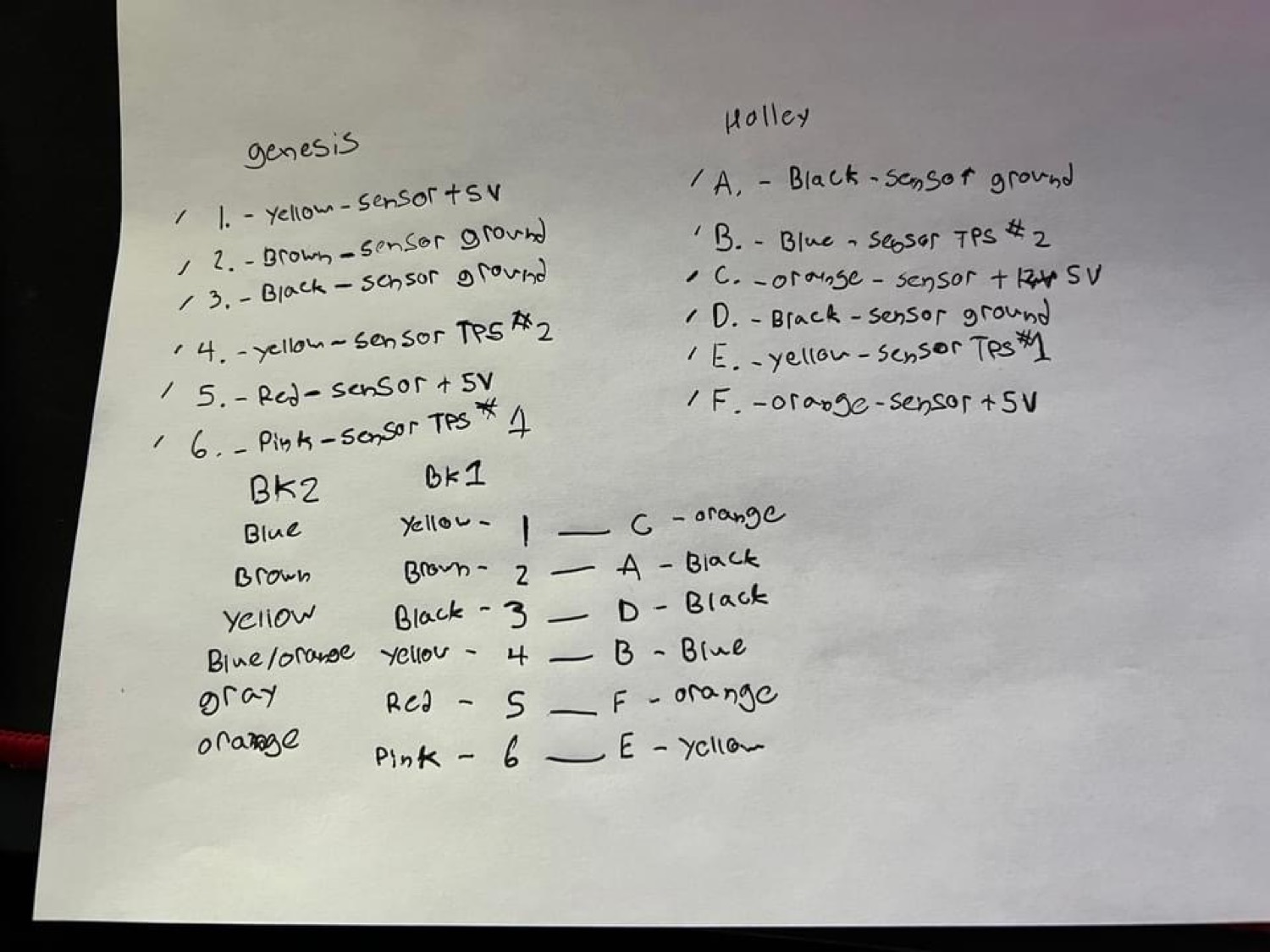

Genesis pedal → Holley pin mapping (BK1 and BK2).

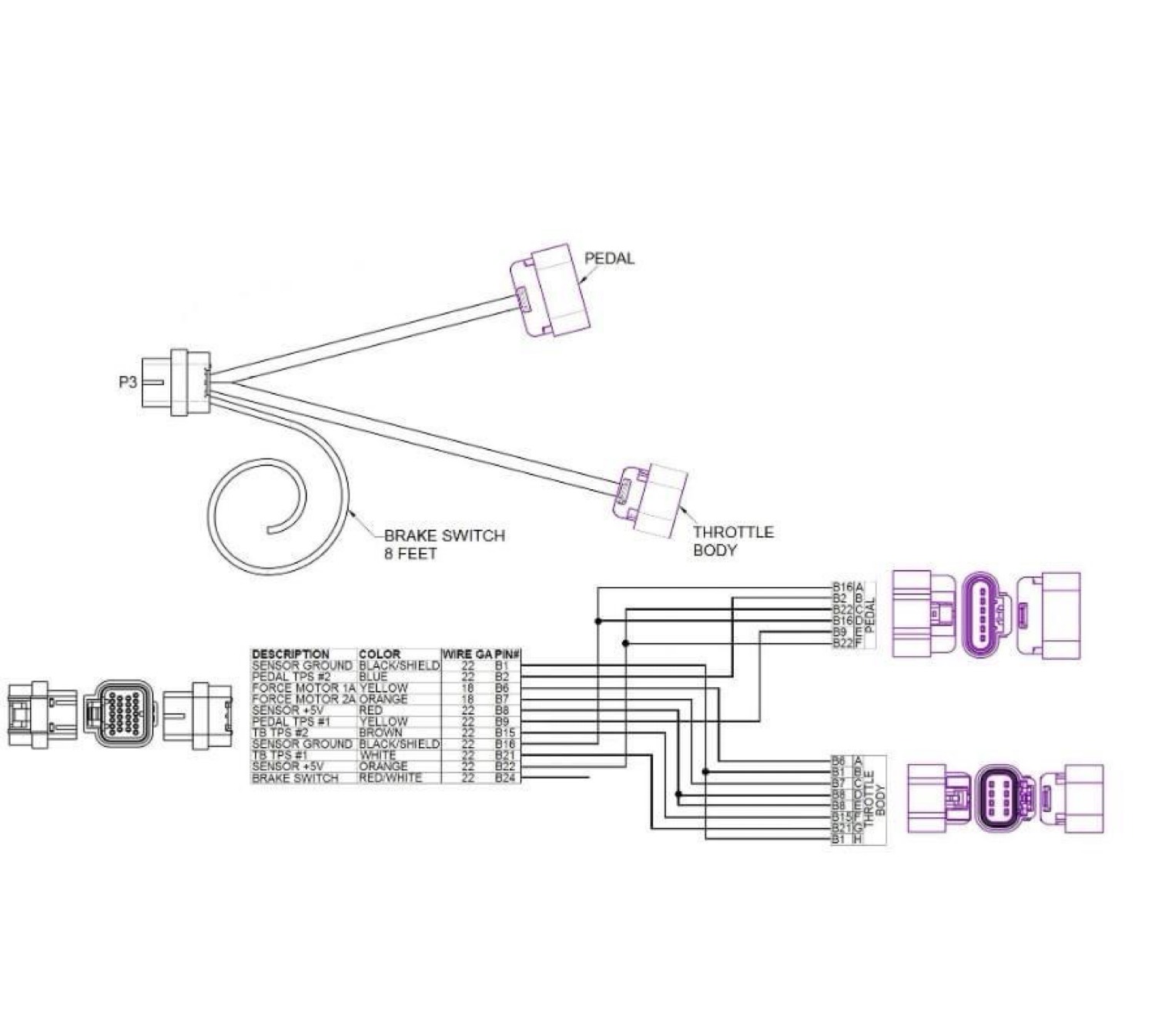

Holley DBW harness diagram.

Community & Parts Links

Sources & further reading

Prices and part numbers were checked in October 2026 and can change. Always confirm with the vendor before ordering.
